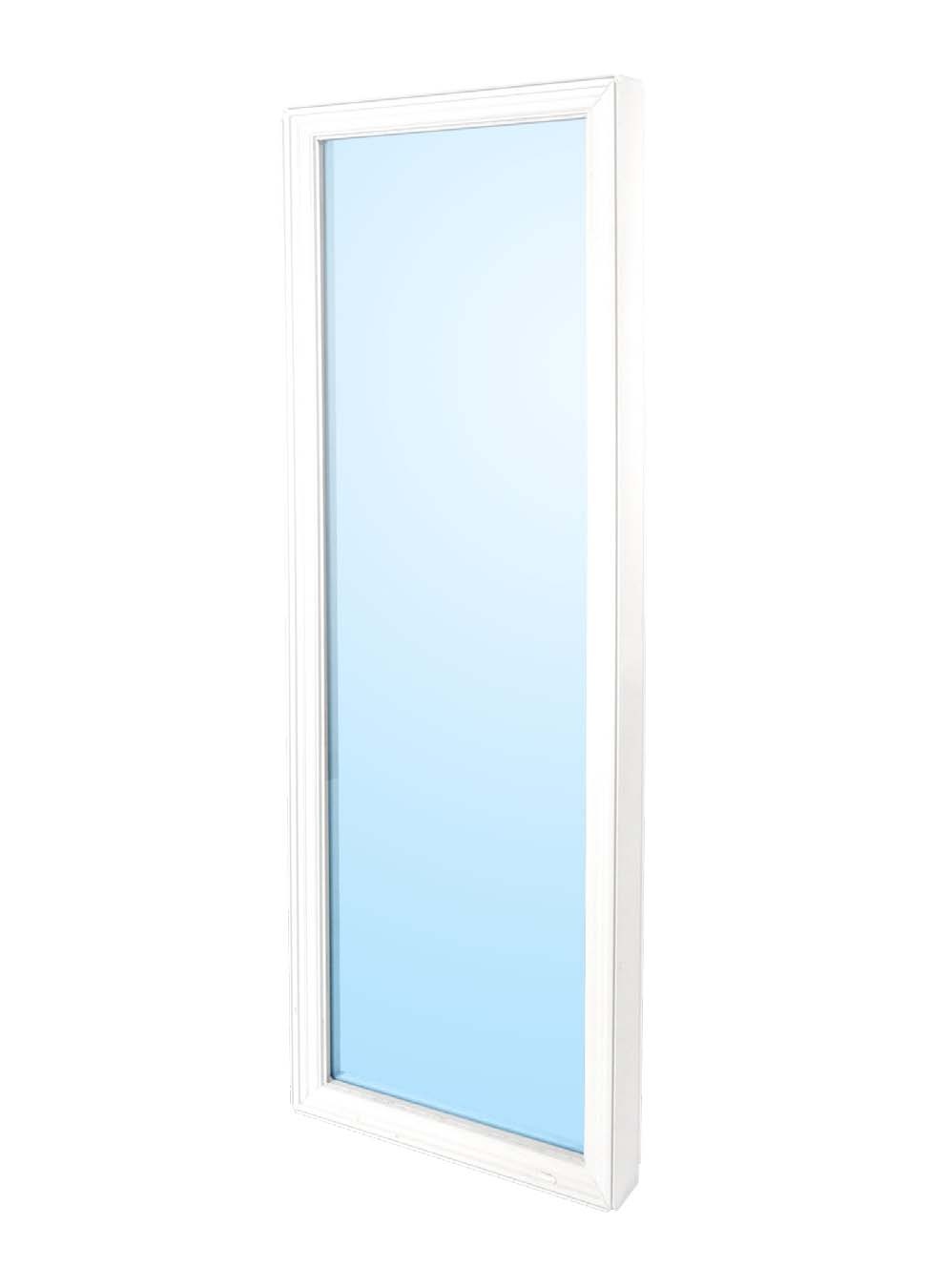

Slim Fixed Window

The Slim Fixed windows are perfect to match up with the slimmer slider and hung frames. These windows when combined with sliders and hung windows add balance and symmetry throughout the home. The slim fixed, also known as Picture window is a good choice if you want to maximize light or your view.


  • Standard Energy Efficient Low E Argon glass units
  • Modern contoured frame
  • Fusion Welded Sashes and Frames

Slim Fixed Window
Product Windows
ENERGY STAR® Zone(s) 1 / 2 / 3
NRCan Number NR7318-9032440-ES
Frame Material Vinyl
Sash Material Vinyl
Layers of Glazing 2
Low E Surface 3
Glazing Cavity Width (mm) 13
Glazing Cavity Fill Argon
U-factor W/m2*K (Btu/h*ft2*F) 1.58 (0.28)
Solar Heat Gain Coefficient 0.59
Air Leakage (m3/h/m) 0.1
Effective Date (yy/mm/dd) 14/02/06
Energy Performance Certification Agency QAI
Structural Certification Agency QAI
Low E Type Soft Coat
Soft Coat
Emissivity 0.068
Spacer TS-D
Tint Clear
Energy Rating 39
Visual Transmittance 0.68
