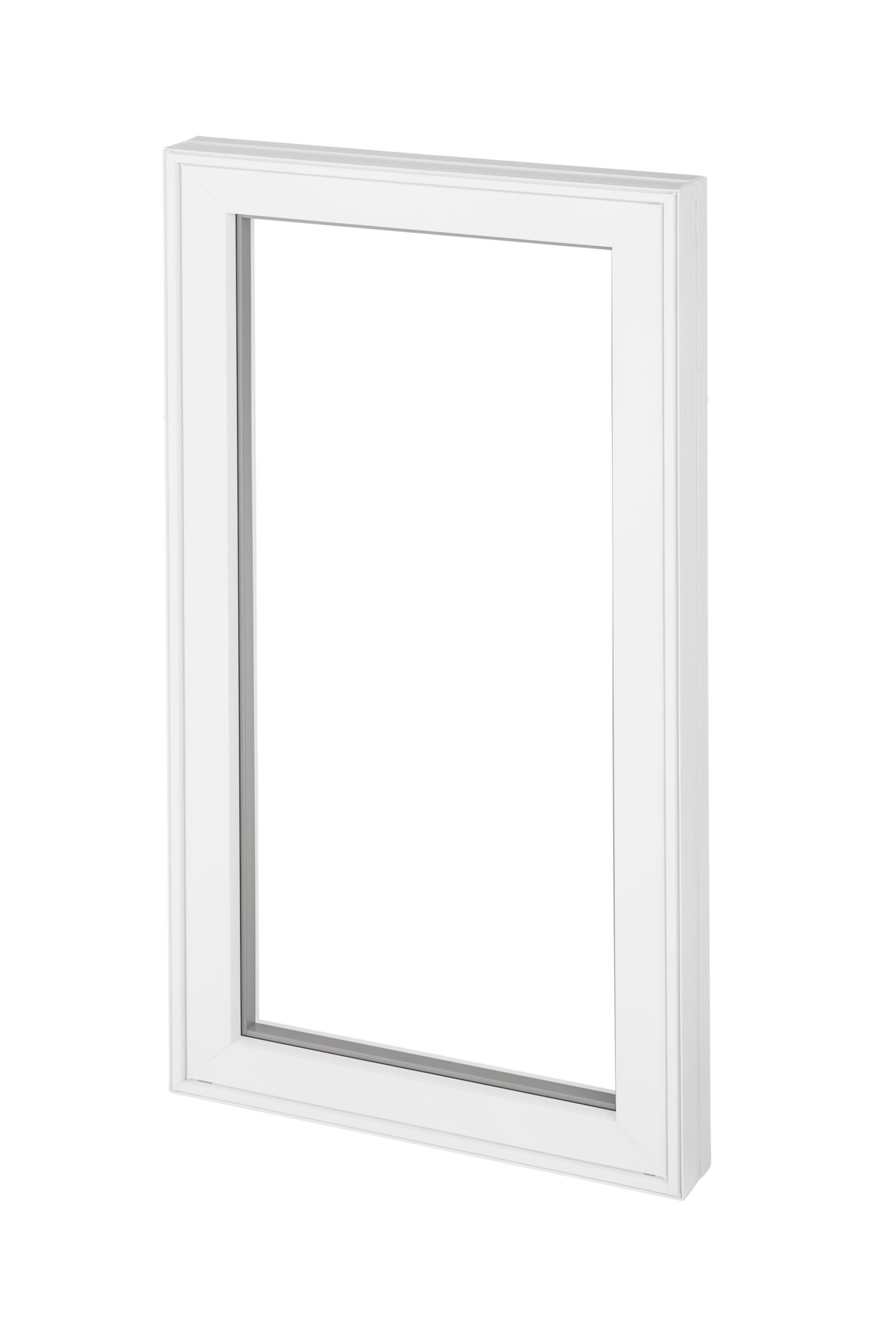

Fixed Casement Windows

The fixed casement is designed specifically to match with operating casement windows. The fixed casement, sometimes referred to as a high profile window is contoured the same way as an operating casement for identical frame sizes to make windows look great without forcing the customer to have all windows operational.


  • Standard Energy Efficient Low E Argon glass units
  • Modern contoured frame
  • Fusion Welded Sashes and Frames

Fixed Casement Windows
Product Windows
ENERGY STAR® Zone(s) 1 / 2 / 3
NRCan Number NR7318-9032440-ES
Frame Material Vinyl
Sash Material Vinyl
Layers of Glazing 2
Low E Surface 3
Glazing Cavity Width (mm) 15
Glazing Cavity Fill Argon
U-factor W/m2*K (Btu/h*ft2*F) 1.52 (0.27)
Solar Heat Gain Coefficient 0.53
Air Leakage (m3/h/m) 0.01
Effective Date (yy/mm/dd) 14/02/06
Energy Performance Certification Agency QAI
Structural Certification Agency QAI
Low E Type Soft Coat
Emissivity 0.068
Spacer TS-D
Tint Clear
Energy Rating 32
Visual Transmittance 0.59
