Patio Sliding Doors

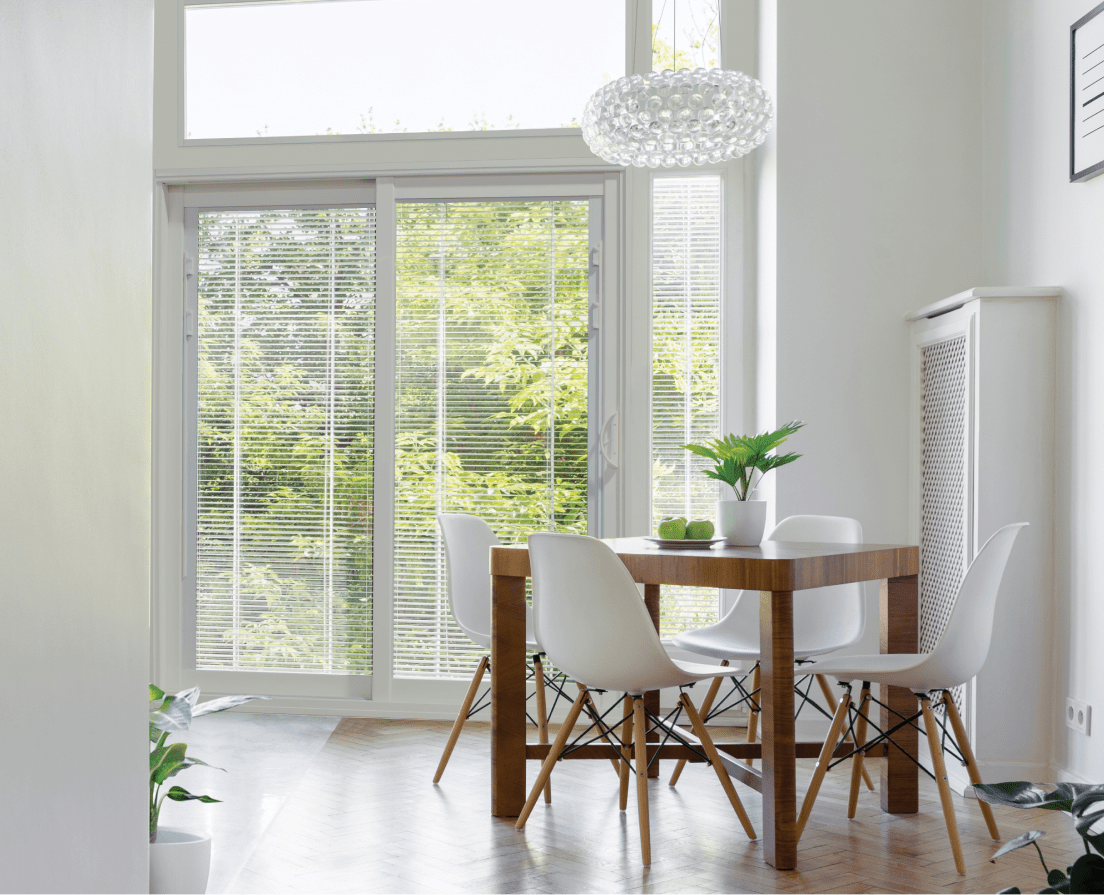

Capri 3.0

Built with your satisfaction in mind. Every CAPRI 3.0 is made to order to your exact specifications and expectations. Hundreds of standard colors give you endless design possibilities.

Standard Features
  • Oversized sash frames — a luxurious look.
  • Soft touch fin weather strip results in effortless gliding action.
  • Capri 3.0’s smooth finished look, no visible installation screws, discrete hidden bumpers.
  • Air infiltration reduced with multi-finned weather strip, top and bottom.
  • Standard twin point lock inside and outside d-handles allow easy operation and superior security.
  • Superior 2" x 1⁄2" screen, lock with pull handles, heavy duty zinc keeper.
  • Lifetime warranty on vinyl and 1” low e- glass units.
Standard Features
  • 6 Standard Brick molds: Zero degree, 5⁄8", 1", 1 3⁄16", 1", 2" and 4" sizes.

  • Vinyl interior extensions. Wood and foam board cut to size, suitable for any wall depth.

  • Interior vinyl casings, 2 3⁄8" and 3 3⁄8".

  • Seamlessly integrated Transoms and Sidelites.

Optional Extras
  • Hundreds of standard paint colours. (Colour match program available).

  • Three distinct upgraded hardware lines.

  • Secondary security locks. (Kicklocks and Topbolts in addition to our twin point lock.)

  • Energy savings, home comfort from hi-efficiency glass packages.

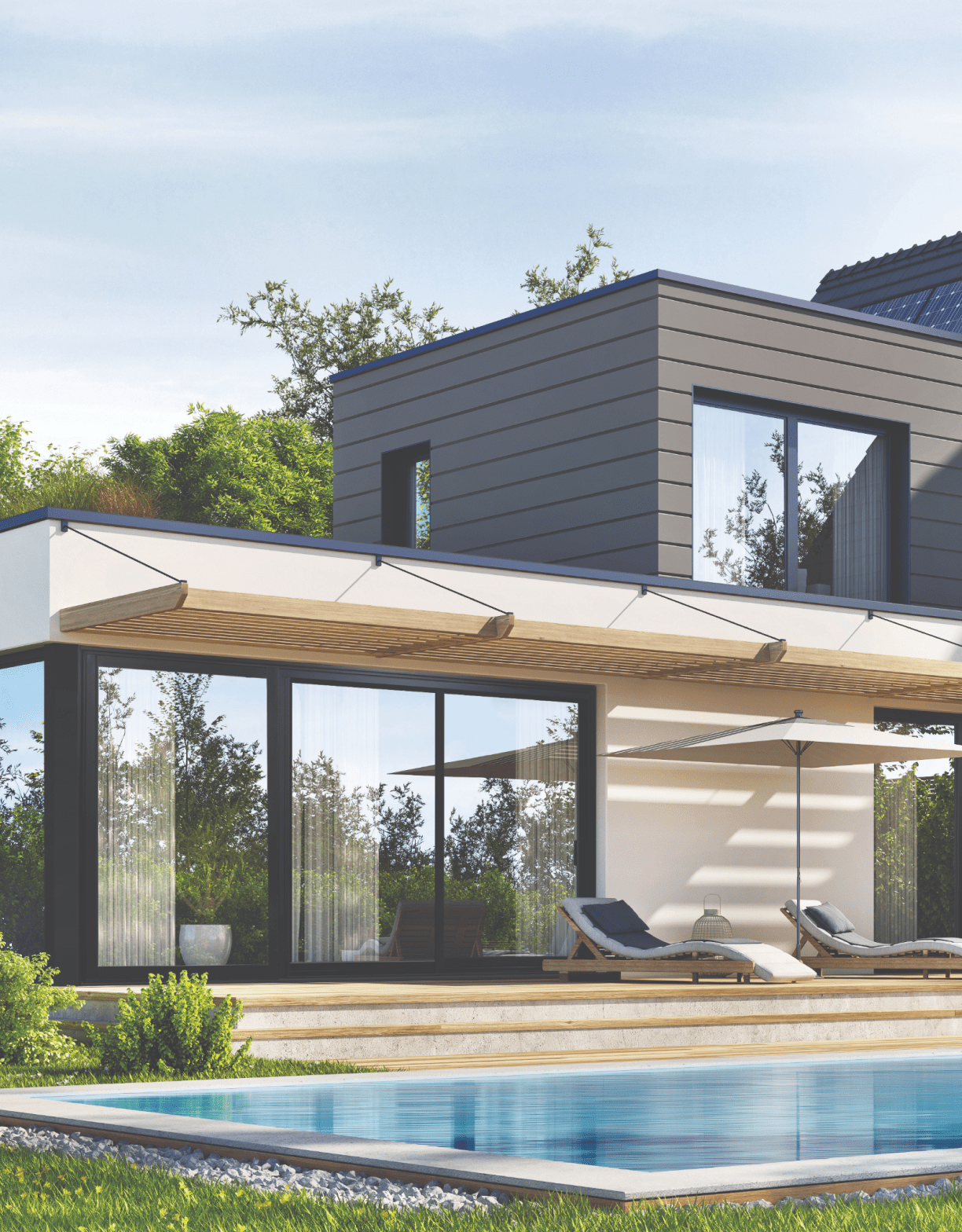

Rimini 2.0

Quality doors designed to last a lifetime.
Superior thermal performance, maximum endurance and resilience
Superior drainage, due to Vista’s superior water clearing system
Easy-to-replace weather stripping
Ultra-durable nylon tandem wheels allow smooth operation – no marks on the gliding rail

Standard Features
  • Widths up to 15 ft (3 panel) and 24 ft (6 panel)

  • Heights up to 108” (some restrictions apply)

  • Optional pleated retractable screens

  • (Black, white, commercial brown and sandalwood only)

  • 7 7/8” Frame Depth

  • Standard Paint Grade Sorrento Handle and Optional San Remo Handles in both Slim and D Series. Optional Satin Nickel Handles in all Series also available

  • Precision “Vista Glide” roller Jamb pocket covers

  • Elegantly Robust sashes make for a most pleasing aesthetic

Handles
  • Easy-to-grip handles with or without key

Genesis Series Patio Door

Genesis Single Slider (OX/XO) patio door is a classic patio door with traditional right-hand (OX) and left-hand (XO) configuration. The reinforced sash and cleverly-engineered stationary panel make this door a great choice for high-traffic areas.

FEATURES and BENEFITS

  • Fully welded 4-5/8" direct glazed frame system.
  • Metal reinforcement fortifies the vertical sash.
  • The stationary panel is fixed and glazed into the frame for enhanced strength and integrity of the structure.
  • 2-1/2" Wide welded sashes with stiles and rails.
  • Integral nailing fin.
  • Exterior glazing system.
  • Available in Single Slider (OX/XO).
  • Sturdy screen with standard 2" wide sash.

Other Perfect® Benefits

  • All vinyl, multi-chamber profile design for superior insulating properties for your comfort and energy savings.
  • All-Vinyl frame.
  • Full perimeter double layer weatherstripping for excellent air and water tightness.
  • Specially formulated, color-matched sealing material for durability in performance and color retention.
  • Stainless steel track cover for long-lasting and smooth operation.
  • Standard sizes available: 5' and 6' width and 6'8" height.

Colour Options

Extruded Solid Colours

  • White
  • Beige
  • Clay

Boulevard Series Patio Doors

The high-end, welded wide sash PERFECT° Sliding patio door system combines the aesthetic elements of a French door with the durability and longevity one has come to expect from a door constructed with high quality PVC. It's perfect for new home construction or renovation projects.

FEATURES and BENEFITS

  • All vinyl, multi-chamber profile design for superior insulating
  • 4-1/2" Wide stiles and rails sash.
  • Welded sashes with glazing beads.
  • Metal reinforcement on the vertical sash.
  • Available in multi-panel configurations.
  • Inside- and outside-jamb pocket covers for an elegant look.
  • Standard Valiant handles with multipoint locking system.
  • Moose Screen with standard 3" wide sash.

Other Perfect® Benefits

  • All vinyl frame.
  • Full perimeter triple layer weatherstripping for excellent air and water tightness.
  • Specially formulated, color-matched sealing material for durability in performance and color retention.
  • Corrosion resistant anodized-aluminum tracks for long-lasting and smooth operation.
  • Variety of aesthetically-pleasing multi-panel system combinations, custom sizes and custom finishes.

Colour Options

Extruded Solid Colours

  • White
  • Beige
  • Clay

Portico Series Patio Door

Portico Single Slider (OX/XO) patio door is a classic patio door with traditional right-hand (OX) and left-hand (XO) configuration. With minor adjustment during installation, this system is reversible as a right-hand and left-hand configuration. It is just perfect for your remodelling and new home project!

FEATURES and BENEFITS

  • All vinyl, multi-chamber profile design for superior insulating properties for your comfort and energy savings.
  • Mechanically-joined frame with accessory groove in standard 5-1/2" frame depth.
  • Mechanically fastened aluminum reinforced door panels for rigidity and strength.
  • Standard sizes available: 5', 6' or 8' width by 6'8" and 8' height.
  • AAMA certified zinc-plated, double tandem steel rollers for durability and smooth, effortless sliding.
  • Corrosion-resistant, anodized-aluminum tracks for ongoing, smooth gliding operation.
  • Full perimeter triple layer weather stripping for excellent air and water tightness.
  • Standard “Landmark" handle (with lock and key upgrade) and available upgrade to “Prestige" series handles.
  • Heavy-duty screen with heavy-gauge extruded aluminum frame and fiberglass mesh for solid frame and smooth operation.
  • Specially formulated, color-matched sealing material for durability in performance and color retention.
  • Specially-designed fabrication equipment combined with some of the most efficient manufacturing processes ensure that the fit, finish and functionality of a PERFECT® brand sliding Patio Door is of the highest quality.

Colour Options

Extruded Solid Colours

  • White
  • Beige
  • Clay
