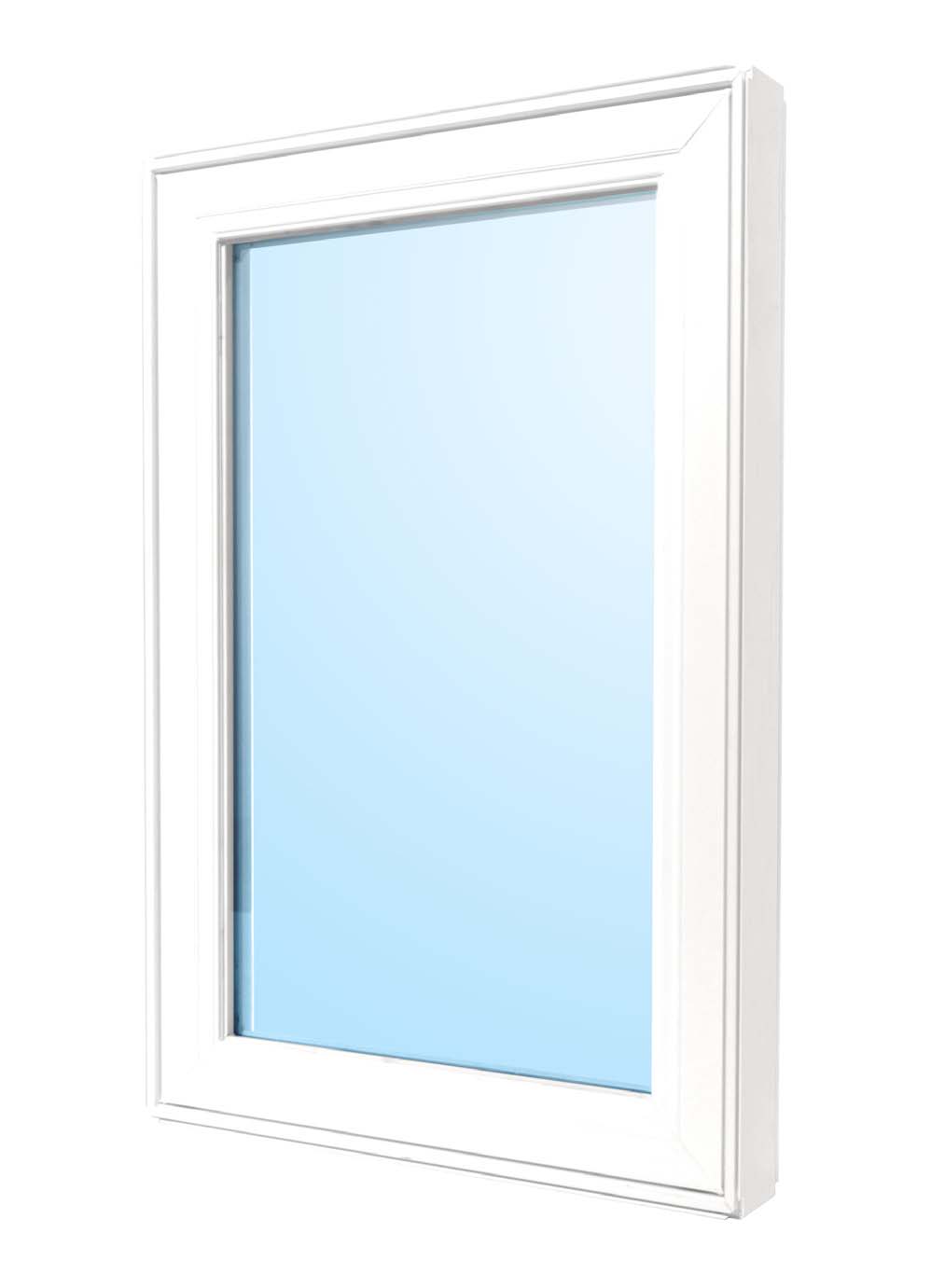

Casement Windows
The casement window designed by All Star Window-Pro is one of the most efficient and attractive operating window on the market today. Extruded seals, bulb seals and Trust Hardware add to the efficiency of this great looking window that rarely requires service..
Features
- Fusion welded frames and sashes
- Bulb Seals and extruded seals creating a Triple Weather Sealing System resulting in more energy efficiency and maximum resistance to air-infiltration
- Standard Low E Argon annealed glass units for thermal efficiency making you stay warmer in winter and cooler in summer
- Design accommodating glass options
- Trust brand window operators and locks offering beauty, ease of use, security and durability
- Standard Multi Point Locks ensuring compression of weather stripping for superior performance
- Lock and Load screen system to simplify screen removal for cleaning hereby eliminating the pin and lock tabs
| Casement Window | |
|---|---|
| Product | Windows |
| ENERGY STAR® Zone(s) | 1 / 2 |
| NRCan Number | NR7318-9032440-ES |
| Frame Material | Vinyl |
| Sash Material | Vinyl |
| Layers of Glazing | 2 |
| Low E Surface | 3 |
| Glazing Cavity Width (mm) | 13 |
| Glazing Cavity Fill | Argon |
| U-factor W/m2*K (Btu/h*ft2*F) | 1.54(0.27) |
| Solar Heat Gain Coefficient | 0.44 |
| Air Leakage (m3/h/m) | 0.17 |
| Effective Date (yy/mm/dd) | 14/02/06 |
| Energy Performance Certification Agency | QAI |
| Structural Certification Agency | QAI |
| Low E Type | Soft Coat |
| Emissivity | 0.068 |
| Spacer | TS-D |
| Tint | Clear |
| Energy Rating | 31 |
| Visual Transmittance | 0.51 |
