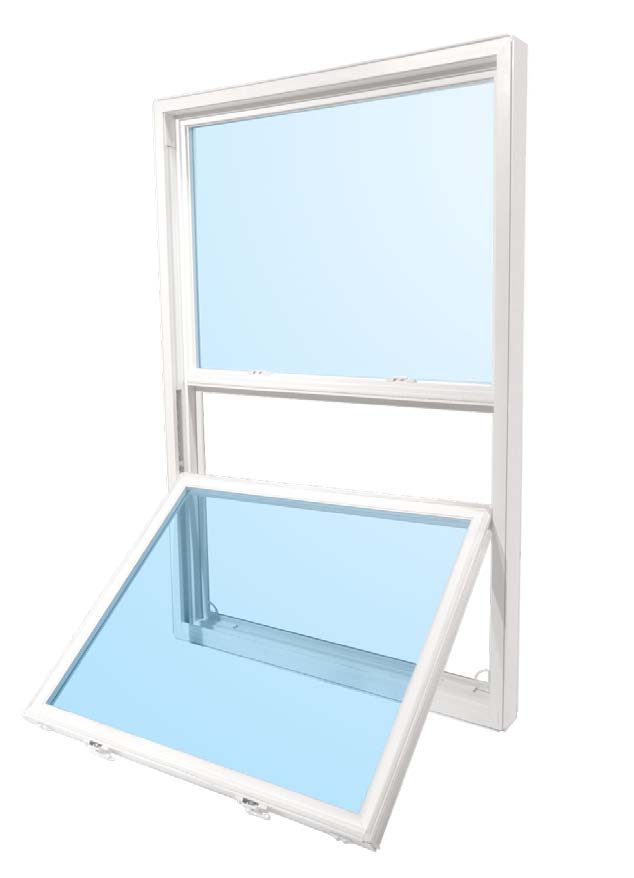

Single Hung Tilt

Single Hung Tilt windows are chosen for their traditional, double hung beauty yet delivering additional security and energy efficiency. The Single Hung Tilt has an operating sash featuring swing-in shoe mechanism where the dual tabs allow for ease of cleaning. The aesthetics of our Single Hung Windows are often preferred for the front of the house as only the bottom half has a screen on the outside.

Features

  • Standard Energy Efficient Low E Argon glass units
  • Standard Removal Screen
  • Modern contoured frame
  • Color matched cam locks
  • Triple Weather Seals
  • Low Profile Tilt Latches
  • Fusion Welded Sashes and Frames
  • Modern spiral balancers simplifying raising and lowering of sashes

Single Hung Tilt Window
Product Windows
ENERGY STAR® Zone(s) 1 / 2
NRCan Number NR7318-9032440-ES
Frame Material Vinyl
Sash Material Vinyl
Layers of Glazing 2
Low E Surface 3
Glazing Cavity Width (mm) 13
Glazing Cavity Fill Argon
U-factor W/m2*K (Btu/h*ft2*F) 1.7 (0.3)
Solar Heat Gain Coefficient 0.54
Air Leakage (m3/h/m) 0.50
Effective Date (yy/mm/dd) 14/02/06
Energy Performance Certification Agency QAI
Structural Certification Agency QAI
Low E Type Soft Coat
Emissivity 0.068
Spacer TS-D
Tint Clear
Energy Rating 33
Visual Transmittance 0.62
