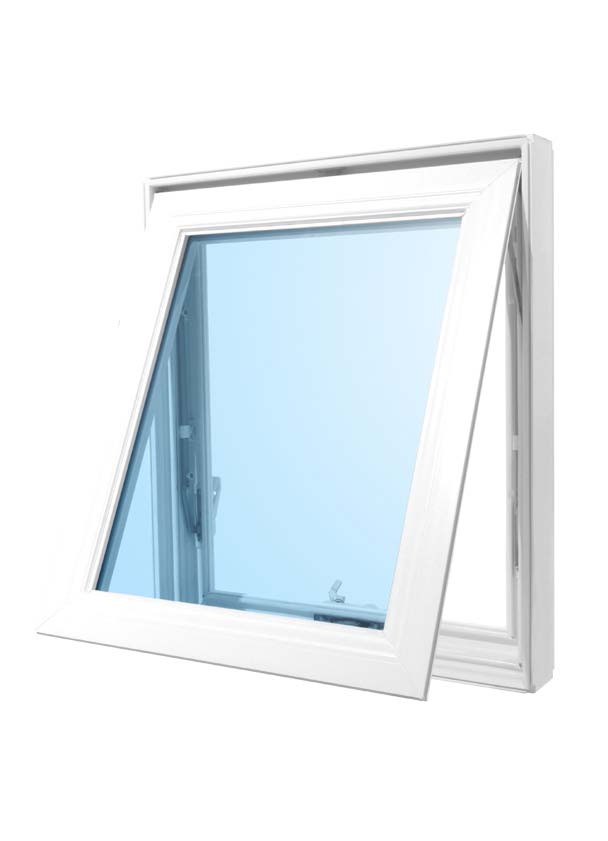

Awning Windows

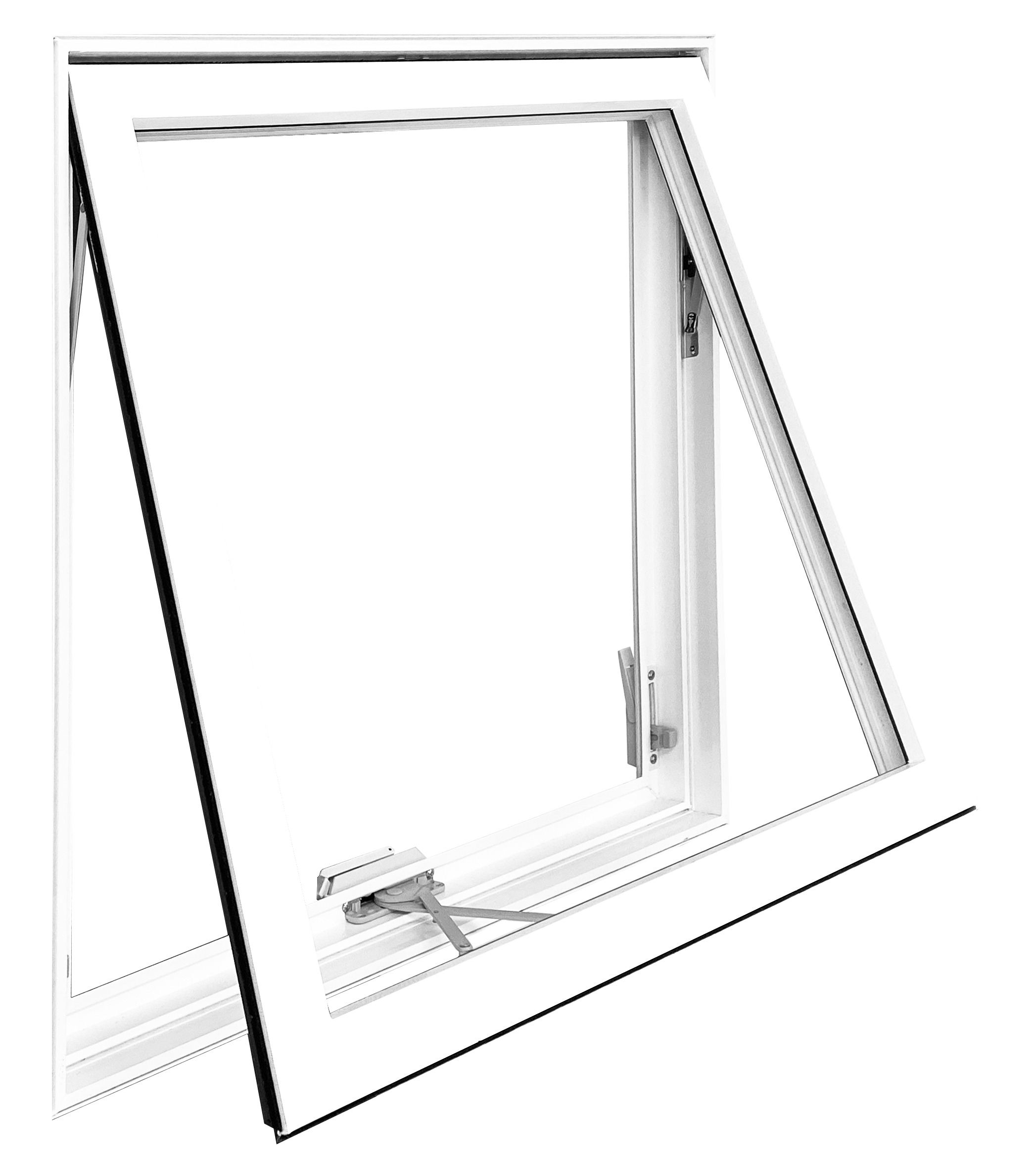

Awning windows have the same simple, contemporary designs and easy installation as our Casement but are also very practical. This window with its Swing-Out feature and the industry’s most reliable and subtle operating mechanism protects from rain allowing ventilation at the same time. An Awning window above doors or other windows is a great choice that allows abundant light and additional air flow

Features

  • Fusion welded frames and sashes
  • Bulb Seals and extruded seals creating a Triple Weather Sealing System resulting in more energy efficiency and maximum resistance to air-infiltration
  • Standard Low E Argon annealed glass units for thermal efficiency making you stay warmer in winter and cooler in summer
  • Design accommodating glass options
  • Trust brand window operators and locks offering beauty, ease of use, security and durability
  • Standard Multi Point Locks ensuring compression of weather stripping for superior performance
  • Lock and Load screen system to simplify screen removal for cleaning hereby eliminating the pin and lock tabs

Awning Windows
Product Windows
ENERGY STAR® Zone(s) 1 / 2
NRCan Number

NR7318-9032440-ES
Frame Material Vinyl
Sash Material Vinyl
Layers of Glazing 2
Low E Surface 3
Glazing Cavity Width (mm) 13
Glazing Cavity Fill Argon
U-factor W/m2*K (Btu/h*ft2*F) 1.55(0.27)
Solar Heat Gain Coefficient 0.44
Air Leakage (m3/h/m) 0.17
Effective Date (yy/mm/dd) 14/02/06
Energy Performance Certification Agency QAI
Structural Certification Agency QAI
Low E Type Soft Coat
Emissivity 0.068
Spacer TS-D
Tint Clear
Energy Rating 30
Visual Transmittance 0.51
